Water Transmission Mains and Appurtenances – Edmonton
Project Overview
This water infrastructure project was completed for EPCOR Water Services in collaboration with Wolseley Canada (Edmonton Waterworks team), SMC2.0, and GS Construction | Underground Infrastructure.
The goal was to design and deliver a custom mechanical vault to support water transmission mains and improve overall system performance. The solution required precision engineering to ensure seamless integration with existing infrastructure and full compliance with EPCOR specifications.
The Challenge
EPCOR required a durable mechanical vault system capable of managing water flow within a constrained installation area.
Key challenges included:
- Limited space on site
- Tight project timelines
- High water pressure requirements
- Need for seamless connection to existing water mains
The project demanded a solution that would minimize on-site work while maintaining reliability and long-term performance.
The Solution: Custom Precast Mechanical Vault

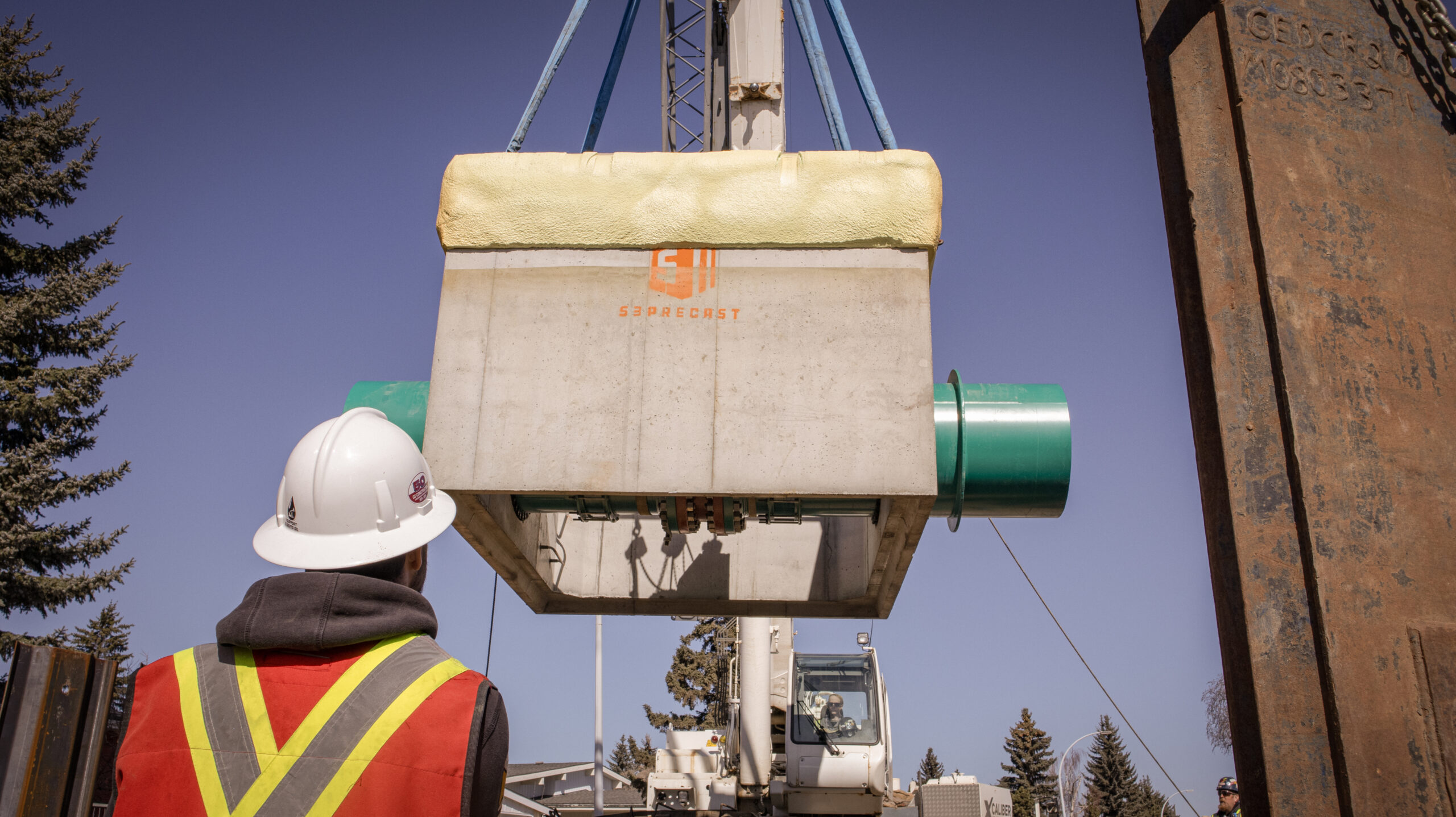

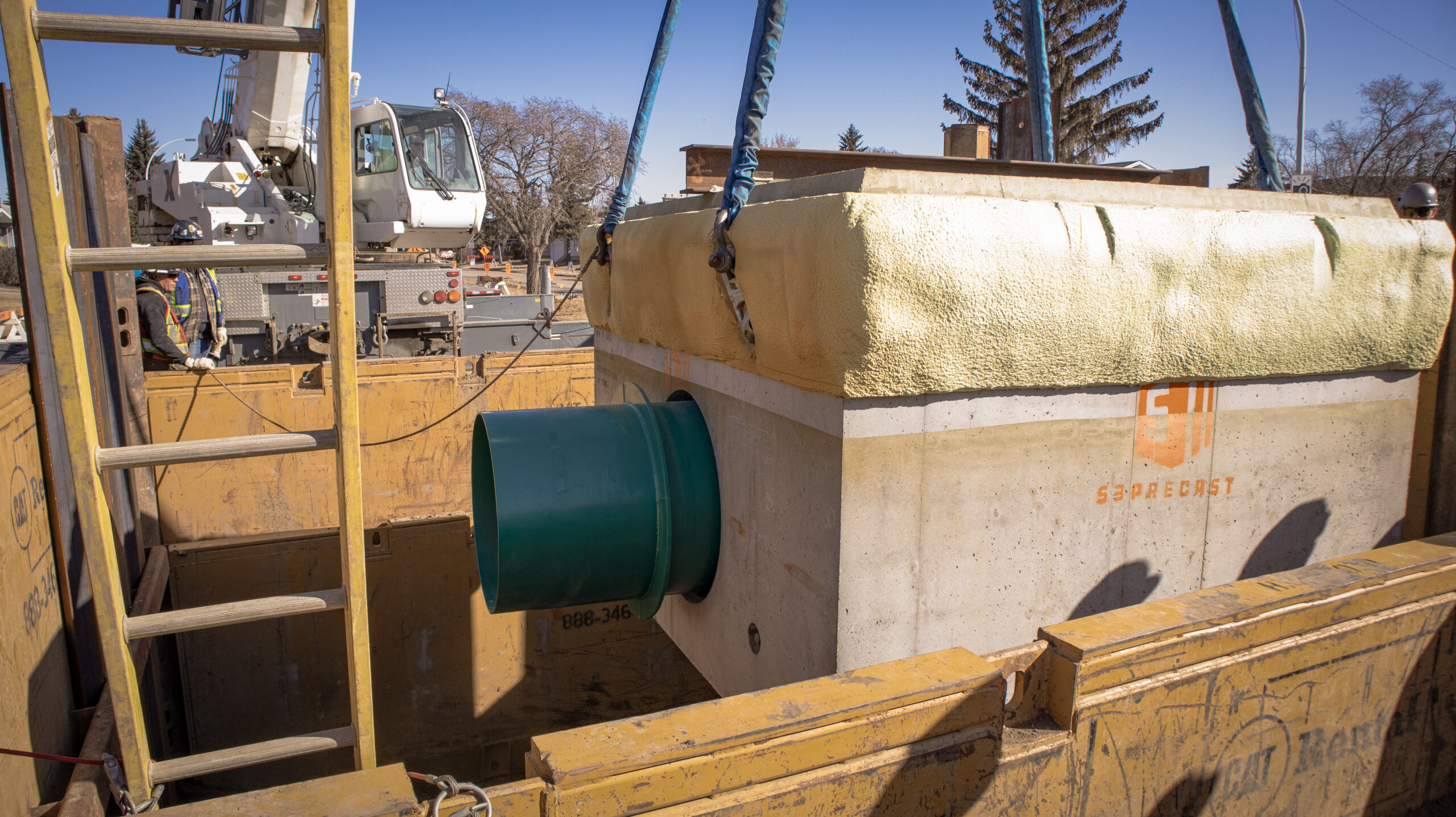

We designed and delivered a precast concrete mechanical vault measuring 3000 mm x 2400 mm, engineered specifically for this application.

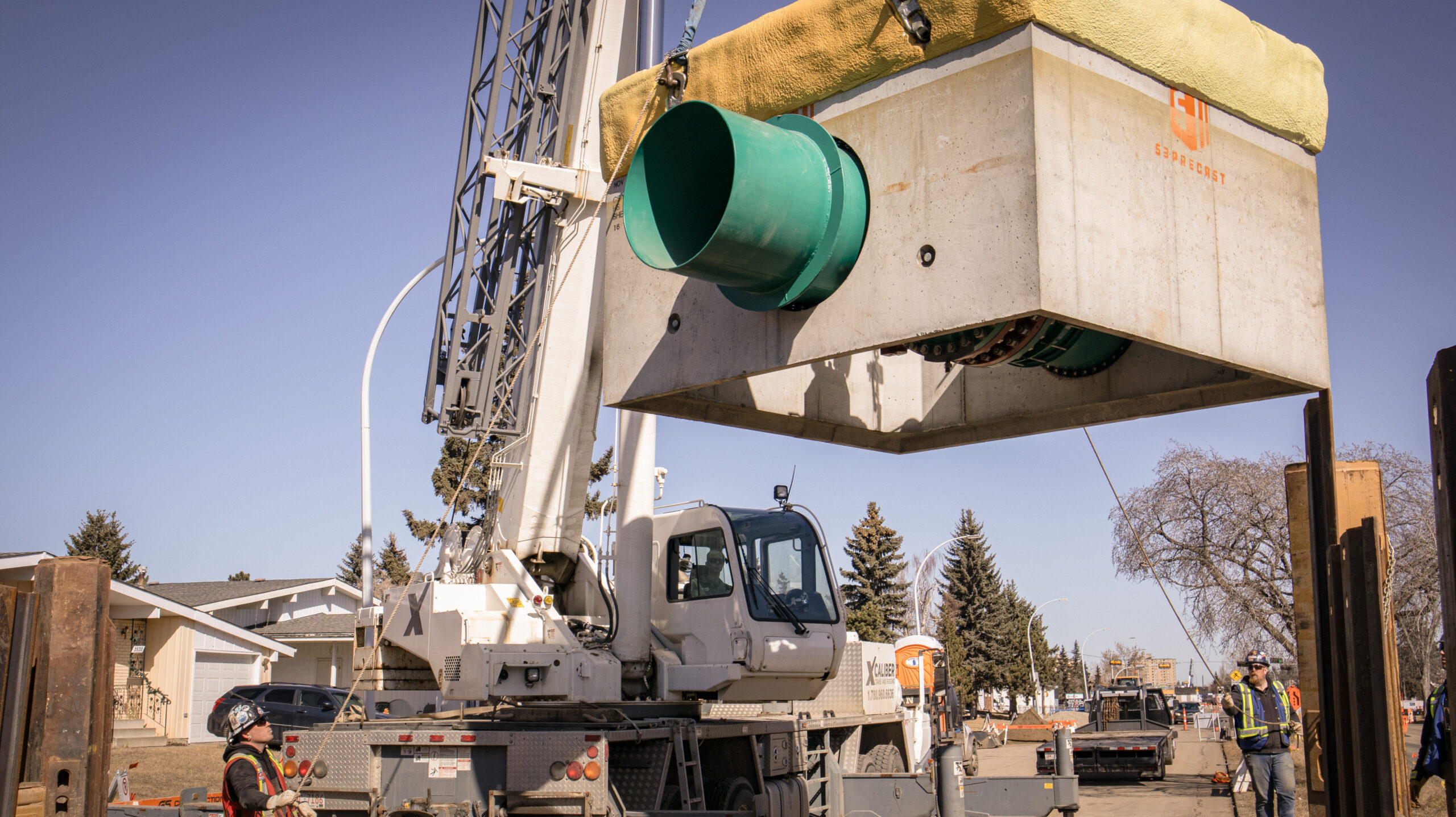

The vault was built as a pre-assembled unit, allowing for faster installation and reducing on-site labor. It plays a critical role in controlling water flow and connecting the water transmission main to the broader municipal infrastructure.
Key FeaturesÂ

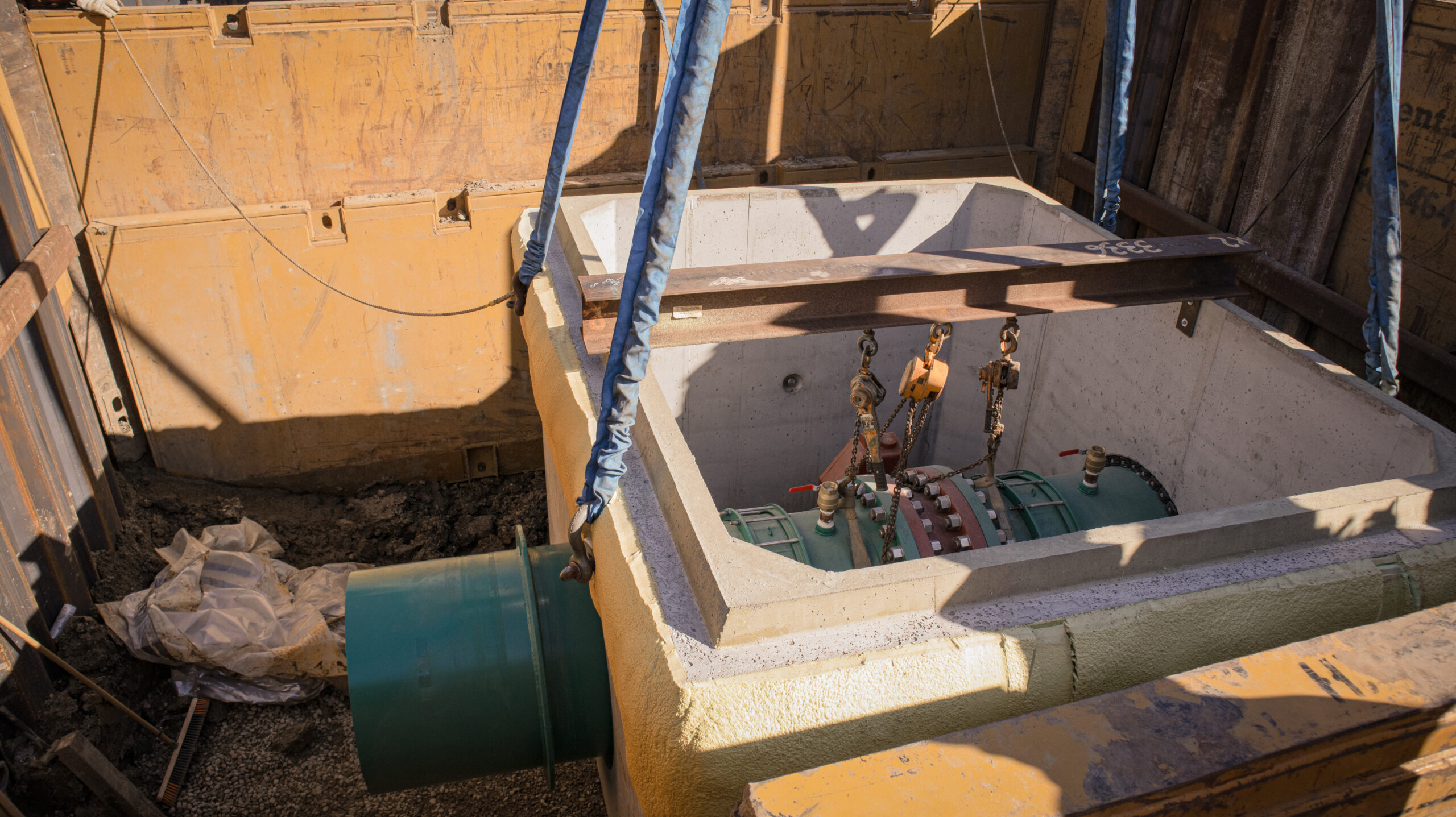

- 900 mm butterfly valve to support efficient water flow control
- Pre-assembled structure to reduce installation time on site
- High-strength precast concrete for durability under pressure

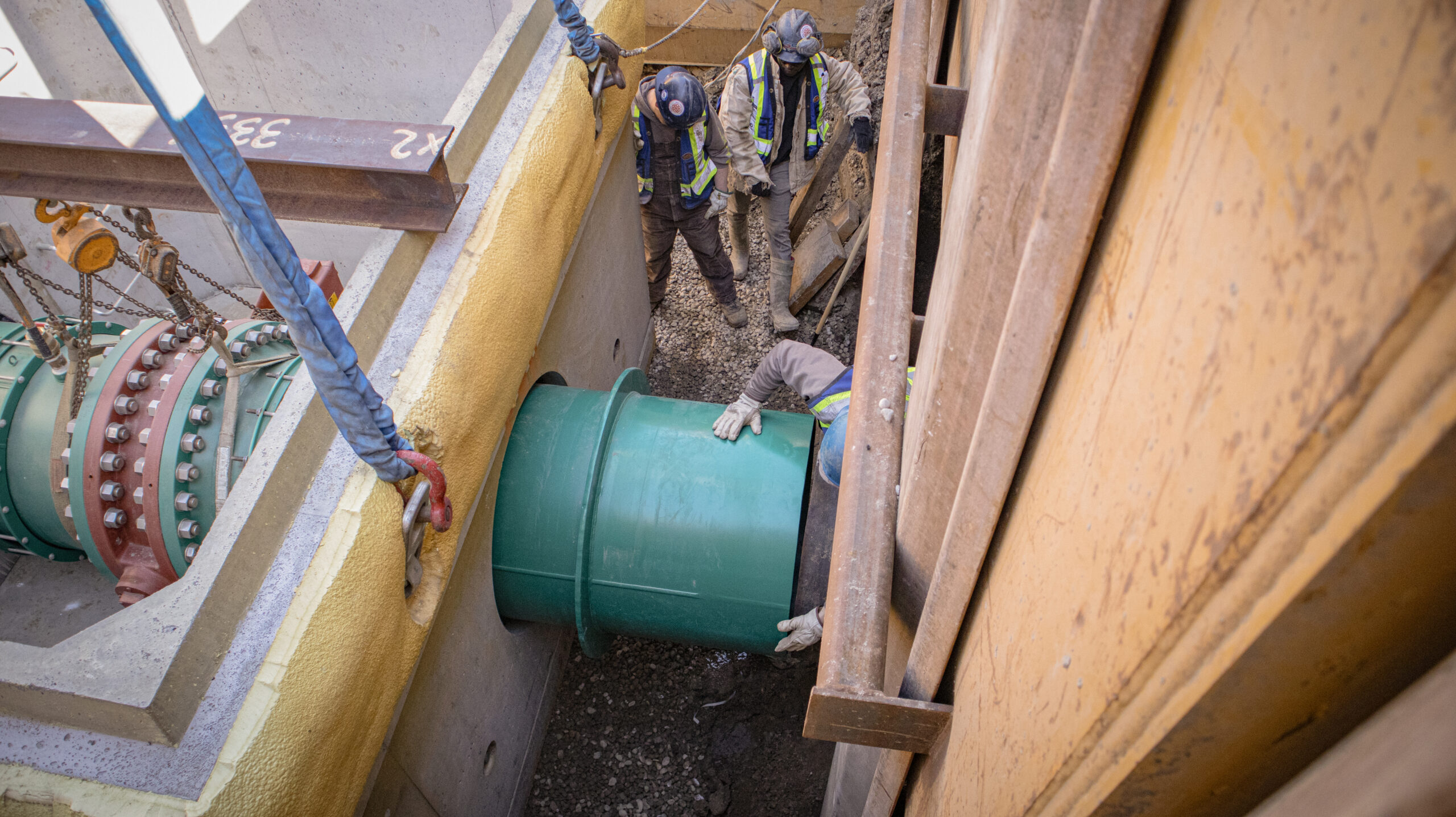

- Exterior bolt-up flanges for secure and efficient water main connections
- Designed to meet EPCOR Water Services specifications
Result: Efficient and Reliable Water Infrastructure
This project delivered a high-performance mechanical vault solution that supports Edmonton’s water transmission system.
Through close collaboration with project partners, the result is a reliable, space-efficient, and easy-to-install system that meets the demanding standards of EPCOR Water Services and contributes to the long-term efficiency of municipal water infrastructure.
